10hp 500kg Tracked Dumper Mini Petrol Power Dumper Gasoline Engine

Product Categories
Weifang Sinolink Heavy Industry Co., Ltd.
Contact Now

10hp 500kg Tracked Dumper Mini Petrol Power Dumper Gasoline Engine

Brand Name : SINOLINK

Model Number : 09745

Certification : CE

Place of Origin : CHINA

MOQ : 1 Unit

Price : USD2500-2750/unit

Payment Terms : T/T, L/C

Supply Ability : 500 Units/month

Delivery Time : 30 work days

Packaging Details : Plywood case:1550x850x1250 mm

Power : 9hp/10hp gasolie engine

Drive : Hydraulic

Load capacity : 500kgs

Steering : Fully hydraulic / control valve

Tilting device : hydraulic, tiltable forwards

Max.Gradeability : 15°

Dimension (L x W x H) : 1890 x 850 x 1224 mm

Contact Now

Standing Crawler Dumper Dumping Construction Machine Transport Load 500kg Gasoline Engine

The mini dumpers are used to transport various loose materials such as gravel, sand or salt. In addition, a dump truck can also drive on steep slopes and transport objects effortlessly on stick and stone. The Mini Dumper has rubber tracks and therefore has great grip even on smooth, slippery and / or muddy surfaces.

Specification

Power

9hp/10hp

Engine brand

9hp Loncin / 10hp RATO / 9hp B&S

Engine start

Recoil start(E-start optional)

Drive

Hydraulic

Own weight

360kgs

Load capacity

500kgs

Steering

Fully hydraulic / control valve

Tilting device

hydraulic, tiltable forwards

Tilting container (LxWxH)

855 x 680 x 550 mm

Volume hollow

approx. 0.25 m³

Max.Gradeability

15°

Ground clearance

65mm

Hydraulic motor

Each max. 720 Nm at 180 bar

Hydraulic pumps

2x10L / min (at 3,000 rpm)

Working pressure

max.180 bar

Working speed (stepless) forwards / backwards

Max. 4.5 / max. 3.2 km / h

Dimension caterpillar

H / 255, W / 180 mm

Dimension (L x W x H)

1890 x 850 x 1224 mm

Packaging dimensions (LxWxH)

1550 x 850 x 1250 mm

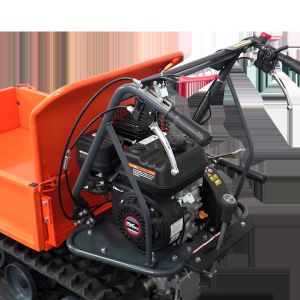

10hp 500kg Tracked Dumper Mini Petrol Power Dumper Gasoline Engine

10hp 500kg Tracked Dumper Mini Petrol Power Dumper Gasoline Engine

10hp 500kg Tracked Dumper Mini Petrol Power Dumper Gasoline Engine
