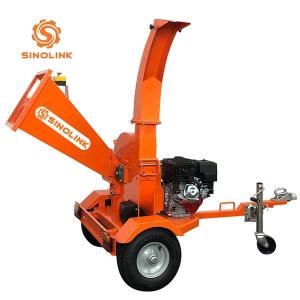

Wood Chipper 15hp Gasoline Powered ATV Forestry Farm Log Tree Branch Chipper Shredder Wood Processor Chipping Machine
Extra Wide Chipper Opening
This impressive garden shredder also has a convenient extra-wide chute opening,
allowing you to feed in more established branches without doing too much chopping
beforehand to break them up.
Easily Portable
Thanks to its portable design, with large 16” wheels and attached trailer ball, you can easily tow the
shredder to wherever it is needed (for off-road use only). It even comes with an in-built levelling jack
so you can safely use this wood chipper on uneven or sloping ground.
GS150 wood chipper Specifications
| Model | GS150 |
| Start Method | Electric or Recoil |
| Drive Type | Belt Drive |
| Chipping Capacity (mm) | 120 |
| Feed Hopper Opening Size (mm) | 500x460 |
| Infeed Throat Opening Size (mm) | 160x176 |
| Disc Size (mm) (Diameter / Thickness) | 550 x 20 |
| Knives | 2 |
| Features | ATV Towing Bar, 360° Rotating Chute |
| Handle Type | N/A |
| Safety Features | Stop Button |
| Engine Model | Loncin 420FD or B&S XR2100 |
| Engine Type | 4 Stroke OHV Single Cylinder |
| Engine Size (cc) | 420 |
| Rated Power (hp) | 15 |
| Disc Speed (RPM) | 2200 |
| Fuel | Petrol |
| Fuel Capacity (L) | 6.5 |
| Engine Oil | SAE30 |
| Engine Oil Capacity (ml) | 1100 |
| Gross Weight (kg) | 270 |
| Tyres | 5.7-8 |
| Off Road Tow Bar | Yes |
| Fully Assembled Dimensions (H x W x L) (mm) | 2550 x 1010 x 1810 |
| Package Dimensions (H x W x L) (mm) | 1250 x 770 x 1050 |
| Fuel Type / Power Source | Petrol |
| Product Type | Wood Chipper |
| Warranty (years) | 1 |
| Commercial Warranty (years) | 1 |
| In The Box | Petrol Wood Chipper, Tool Set, Manual
|
There is an Emergency stop Bar at the feeder hopper.
When it is depressed it cuts off the engine.
As the engine reduces speed the clutch will release and the Disc will begin to slow down.
Easy access inside the disc cover to the disc and blades via a quick release latch.
The disc cover has a micro switch to stop the engine being started with the cover open.
The exit shoot, can swivel 360°, throwing the chip into a nearby trailer or pile.
LONCIN 420cc 27Nm
Easy Pull Start
Double Belt with Clutch (no load during starting)
Capacity 4” 100mm - cutting point is 160Wx 200H (mm)
360° Rotating Discharge Chute
Double Blades (reversible)
Anvil: Adjustable
Large feed shoot, with gravity self feed.
LED tail light and NZ & pin plug
Tyres: E-Mark 5.7-8 Road Tyre
Folding height adjustable jockey wheel
Coupling 1 7/8”
Extremely strong and robust. Main housing is made of 5mm steel plate, and the base of 4mm plate.
10mm bearing boss plate.
Weight: 260kgs
