Atv chipper gas Engine power Wood Chipper Timber Shredder branch cut Shredder
Heavy-Duty Electric-Start Wood Chipper
The GS150 is an extremely powerful wood chipper from Hyundai, able to handle even the most
established of tree branches with diameters up to a massive 12cm.
Powerful Loncin Engine
Powered by a heavy-duty 420cc / 15hp 4-stroke OHV electric-start Loncin engine,
it will provide you with a powerful performance each and every time. Featuring an
electric-start function, this ensures that you can get chipping at the push of a button
with no effort required, unlike previous recoil pull-start chipper models.
Chip Large Quantities of Wood
The GS150 is capable of chipping and shredding huge quantities of wood and branches
into easily-handled chippings quickly and effortlessly, whether you're using it for domestic or professional purposes.
Up To 12cm Chipping Capacity
Large branches have met their match with this powerful machine! Built to make chipping large branches
simple and easy, the GS150's 2-blade drum mechanism has been designed to draw in and chip branches
and tree trunks with up to a 12cm diameter.
Extra Wide Chipper Opening
This impressive garden shredder also has a convenient extra-wide chute opening,
allowing you to feed in more established branches without doing too much chopping beforehand to break them up.
Easily Portable
Thanks to its portable design, with large 16” wheels and attached trailer ball, you can easily tow the shredder
to wherever it is needed (for off-road use only). It even comes with an in-built levelling jack so you can safely
use this wood chipper on uneven or sloping ground.
Gasoline powered disc wood chipper specification:
| Model | GS150 |
| Start Method | Electric or Recoil |
| Drive Type | Belt Drive |
| Chipping Capacity (mm) | 120 |
| Feed Hopper Opening Size (mm) | 500x460 |
| Infeed Throat Opening Size (mm) | 160x176 |
| Disc Size (mm) (Diameter / Thickness) | 550 x 20 |
| Knives | 2 |
| Features | ATV Towing Bar, 360° Rotating Chute |
| Handle Type | N/A |
| Safety Features | Stop Button |
| Engine Model | Loncin 420FD or B&S XR2100 |
| Engine Type | 4 Stroke OHV Single Cylinder |
| Engine Size (cc) | 420 |
| Rated Power (hp) | 15 |
| Disc Speed (RPM) | 2200 |
| Fuel | Petrol |
| Fuel Capacity (L) | 6.5 |
| Engine Oil | SAE30 |
| Engine Oil Capacity (ml) | 1100 |
| Gross Weight (kg) | 270 |
| Tyres | 5.7-8 |
| Off Road Tow Bar | Yes |
| Fully Assembled Dimensions (H x W x L) (mm) | 2550 x 1010 x 1810 |
| Package Dimensions (H x W x L) (mm) | 1250 x 770 x 1050 |
| Fuel Type / Power Source | Petrol |
| Product Type | Wood Chipper |
| Warranty (years) | 1 |
| Commercial Warranty (years) | 1 |
| In The Box | Petrol Wood Chipper, Tool Set, Manual
|
There is an Emergency stop Bar at the feeder hopper.
When it is depressed it cuts off the engine.
As the engine reduces speed the clutch will release and the Disc will begin to slow down.
Easy access inside the disc cover to the disc and blades via a quick release latch.
The disc cover has a micro switch to stop the engine being started with the cover open.
The exit shoot, can swivel 360°, throwing the chip into a nearby trailer or pile.
LONCIN 420cc 27Nm
Easy Pull Start
Double Belt with Clutch (no load during starting)
Capacity 4” 100mm - cutting point is 160Wx 200H (mm)
360° Rotating Discharge Chute
Double Blades (reversible)
Anvil: Adjustable
Large feed shoot, with gravity self feed.
LED tail light and NZ & pin plug
Tyres: E-Mark 5.7-8 Road Tyre
Folding height adjustable jockey wheel
Coupling 1 7/8”
Extremely strong and robust. Main housing is made of 5mm steel plate, and the base of 4mm plate. 10mm bearing boss plate.
Weight: 260kgs
Product Tags:
|
|

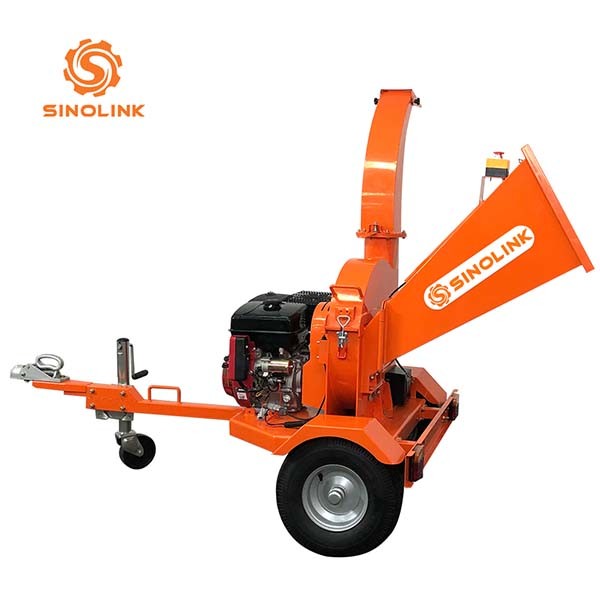

420cc Biomass Wood Chipper Shredder Mulcher Tree Branch Chopper Grinder Images
|
